Voltage collection template for the BMS battery management system

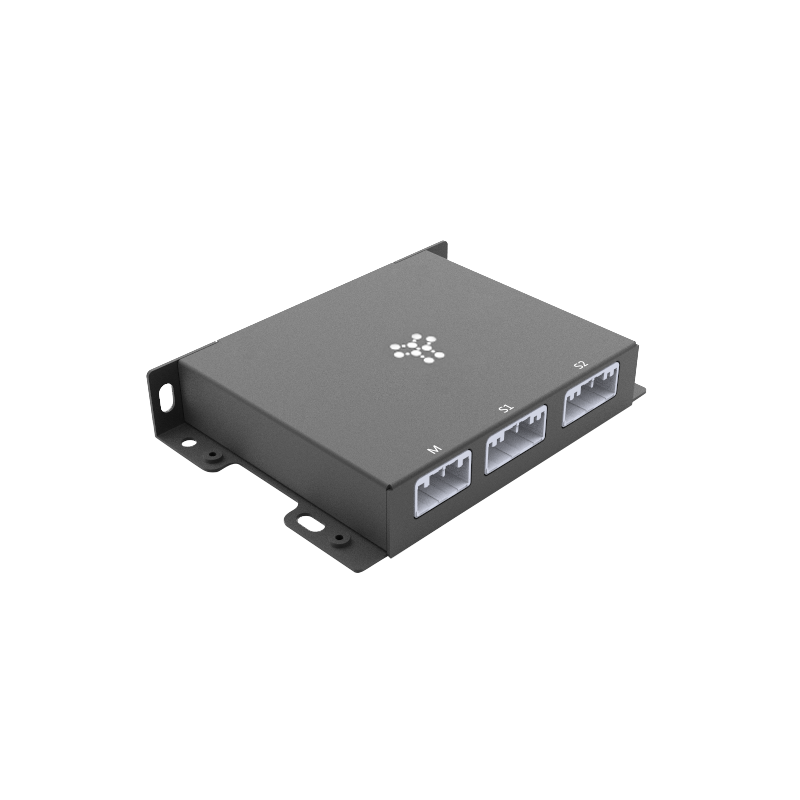

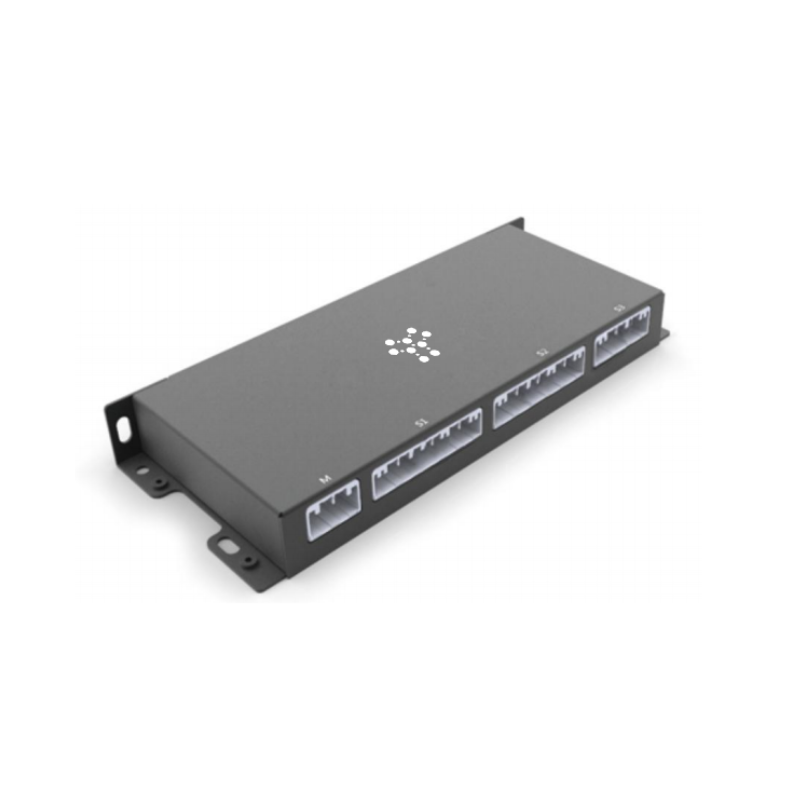

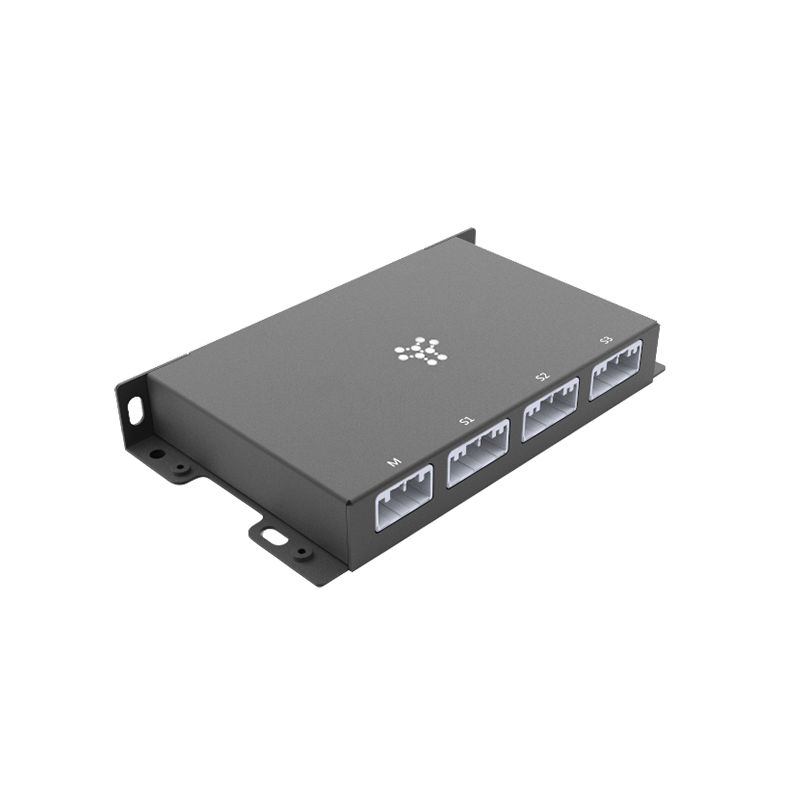

Slave control module (ZK-M680-3612)

Number of battery strings: 36-60

System power supply: 9~36V

Operating current: < 40mA/12V

Operating temperature: -40℃~85℃

NTC collection: 10+2 channels

Communication unit: 1 CAN bus

Main functions: Collect and monitor the voltage and temperature of single cell, intelligent cell balance management

Battery type: Supercapacitor, lithium iron phosphate, ternary, lithium manganate

Application scope: low-speed vehicle, robot, AGV, forklift, etc
