BMS Battery management system main control template

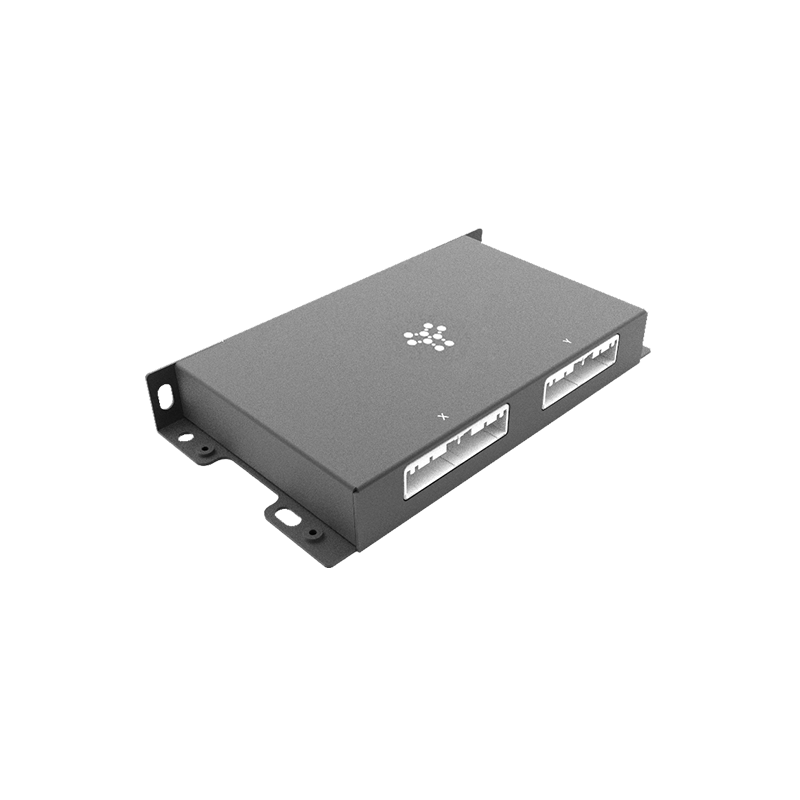

Main control module (SZK-C560)

Number of battery strings: 22-420

System power supply: 9~36V

Operating current: < 180mA/12V

Operating temperature: -40℃~85℃

Accuracy of estimation: ≤5%

Communication unit: 4 CAN buses, 1 RS485 bus

Shell size: 177*99*26.4mm

Main functions: SOC calculation charge and discharge control, internal and external communication, relay drive, electrical protection

Battery type: Supercapacitor, lithium iron phosphate, ternary, lithium manganate

Applicable scope: electric cars, buses, ships, industrial and commercial energy storage and other scenarios
